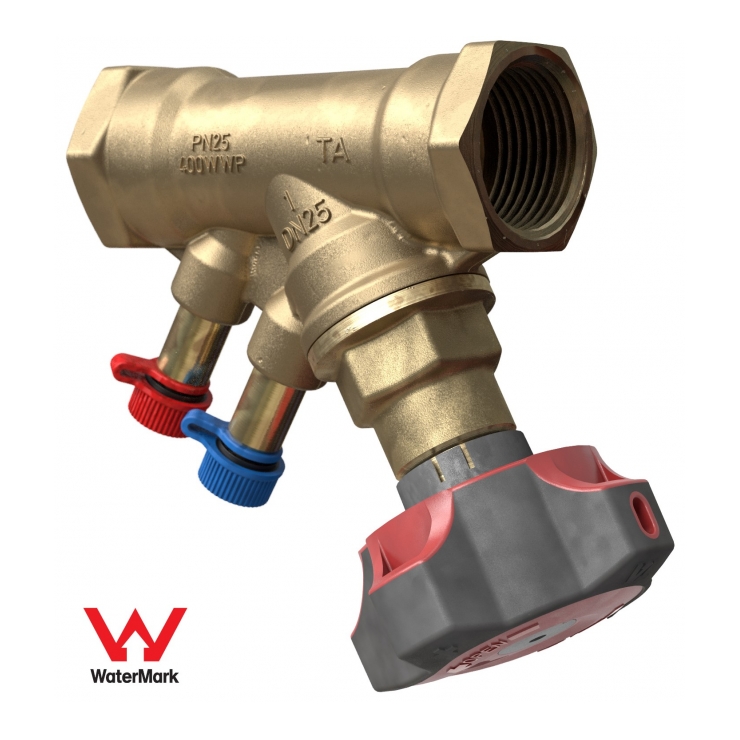

TA STAD Balancing Valve PN25 WM
ENQUIRE NOWSKU-TA-STAD10-PN25 TA STAD BALANCING VALVE W/M 10MM (52 858-110) threaded
SKU-TA-STAD15-PN25 TA STAD BALANCING VALVE W/M 15MM (52 858-115) threaded
SKU-TA-STAD20-PN25 TA STAD BALANCING VALVE W/M 20MM (52 858-120) threaded
SKU-TA-STAD25-PN25 TA STAD BALANCING VALVE W/M 25MM (52 858-125) threaded
SKU-TA-STAD32-PN25 TA STAD BALANCING VALVE W/M 32MM (52 858-132) threaded
SKU-TA-STAD40-PN25 TA STAD BALANCING VALVE W/M 40MM (52 858-140) threaded
SKU-TA-STAD50-PN25 TA STAD BALANCING VALVE W/M 50MM (52 858-150) threaded
Threaded connection. Manual Balancing valve.
DN 10-50
PN 25
- Max. working temperature: 120°C (intermittent 150°C)
- For higher temperatures (max. 150°C), see STAD-C.
- Min. working temperature: -20°C
Application:
- Heating and cooling systems
- Tap water systems
- Balancing
- Pre-setting
- Measuring
- Shut-off
- Draining (depending on valve type)
Water or neutral fluids, water-glycol mixtures (0-57%).
- Female thread according to ISO 228. Thread length according to ISO 7/1.
- Male thread according to ISO 228. Thread length according to DIN 3546.
52 158-0xx: WaterMark, IAPMO R&T OCEANA
- Max. working temperature: 120°C (intermittent 150°C) For higher temperatures (max. 150°C), see STAD-C. Min. working temperature: -20°C
- PN25
