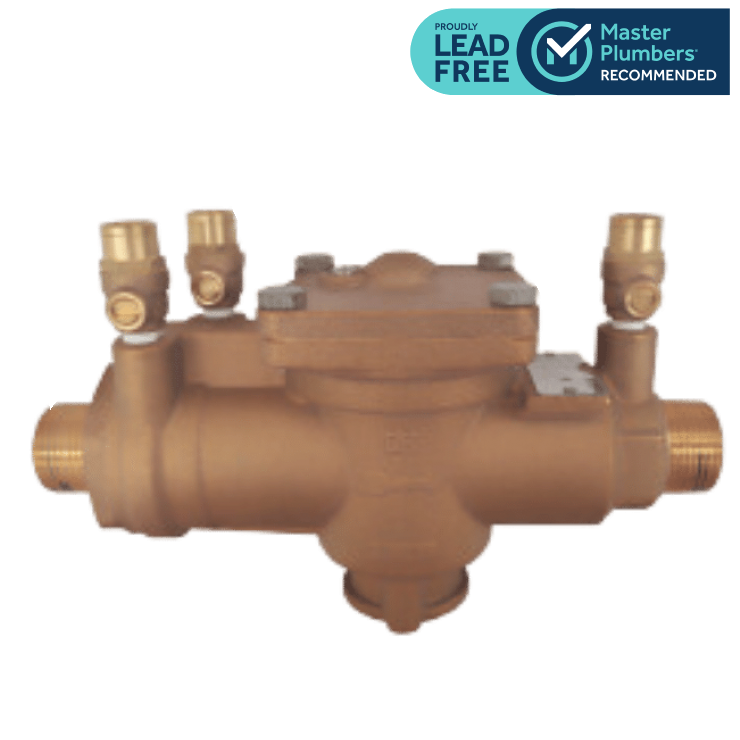

009 Lead Free Brass RPZD Less Fittings

ENQUIRE NOW

SKU-LF009-15BLF 15mm

SKU-LF009-20BLF 20mm

SKU-LF009-25BLF 25mm

SKU-LF009-32BLF 32mm

SKU-LF009-40BLF 40mm

SKU-LF009-50BLF 50mm

Series LF009 Reduced Pressure Zone Devices are designed to protect potable water supplies in accordance with national plumbing codes and water authority requirements. This series can be used in a variety of installations, including the prevention of health hazard cross-connections in piping systems or for containment at the service line entrance. This series features two in-line, independent check valves, captured springs and replaceable check seats with an intermediate relief valve. Its compact modular design facilitates easy maintenance and assembly access.

Features

  • Compact, space saving design
  • Lead free bronze body construction for durability
  • Large body passages provides low pressure drop
  • Top entry single access cover and modular check construction for ease of maintenance
  • No special tools required for servicing
  • Captured springs for safe maintenance
  • Internal relief valve for reduced installation clearances
  • Replaceable seats for economical repair
  • Ball valve test cocks — screwdriver slotted


  • Temperature Range: 0.5°C – 90°C
  • Maximum Working Pressure: 1400kPa (14bar)
  • Design Standard: AS/NZS 2845.1
  • Connection Standard: DN15-DN50: MxM BSP
  • Working Medium: Non corrosive liquids
